اسپیرومتر / اسپیرومتری رومیزی برند مدیتک مدل 100
۹۰٬۰۰۰٬۰۰۰ تومان
این محصول توسط تیم متخصص اسپیرومتری با پشتیبانی کامل فنی و کاربری ارائه می گردد
دستگاه اسپیرومتر SP100 یک دستگاه قابل حمل تست عملکرد ریه است که عمدتا برای بررسی پارامترهای مربوط به عملکرد ریه برای بیماران استفاده می شود. می توان آن را در محیط های مختلف مانند بیمارستان ها، کلینیک ها و غیره اعمال کرد و همچنین برای جوامع، مدارس، کارخانه ها و مکان های دیگر برای انجام تحقیقات اپیدمیولوژیک، معاینه بهداشتی، غربالگری بیماری های شغلی مناسب است.
از جمله اندازه گیری ظرفیت حیاتی اجباری (FVC)، ظرفیت حیاتی (VC/SVC)، حداکثر تهویه داوطلبانه (MVV) و عملکردهای مربوطه، بیش از 50 پارامتر قابل اندازه گیری و نمایش است. برای چندین بار اندازه گیری، نتیجه بهینه نمایش داده می شود. وضعیت موضوع را می توان با نسبت مقدار اندازه گیری شده و مقدار پیش بینی شده نشان داد.
پارامترهای قابل اندازه گیری: ظرفیت حیاتی اجباری (FVC): FVC، FEV1، PEF، (FEV1/FVC)، FEF25، FEF50، FEF75، FEF2575، FEV6، FEV1/FEV6، ELA، FET، EVOL، FIVC، FIVI، FIVI/FIVC، PIF، MVV، و غیره.
ظرفیت حیاتی (VC/SVC): VC,IC,ERV,IRV,EVC,IVC,TV,VE

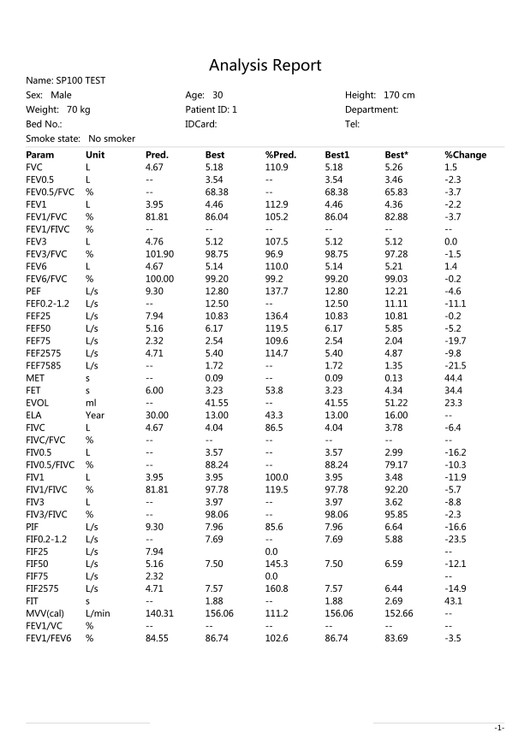

همراه با دستگاه، نرم افزار کامپیوتری مخصوص (تحت ویندوز) ارائه خواهد شد. به وسیله این نرم افزار، قادر خواهید بود تا نتیجه تست های انجام شده را به کامپیوتر منتقل نموده، آرشیو کرده و درصورت لزوم، بوسیله پرینتر متصل به کامپیوتر، روی کاغذ سایز A4، چاپ نمایید.
Introduction

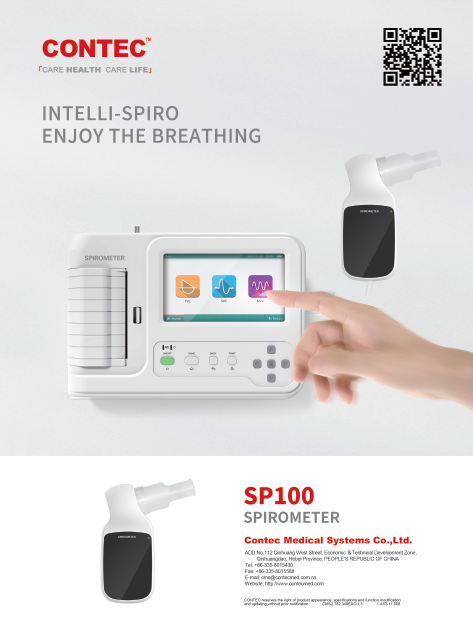

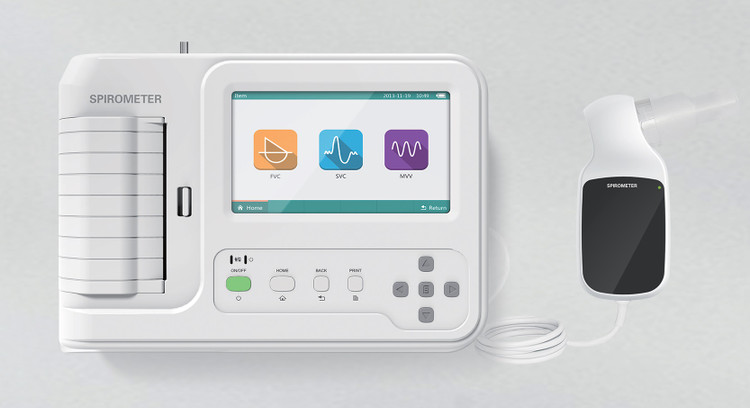

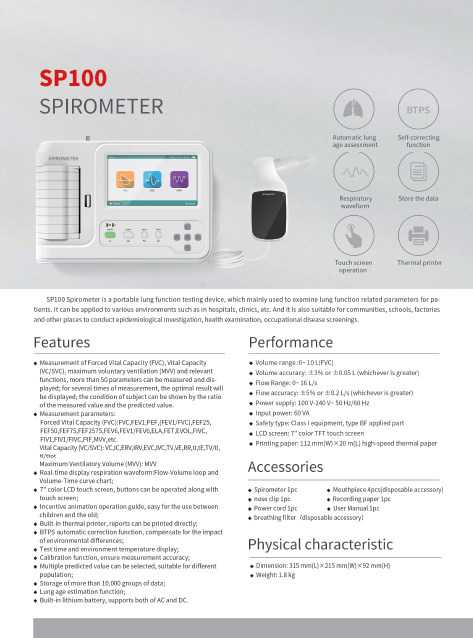

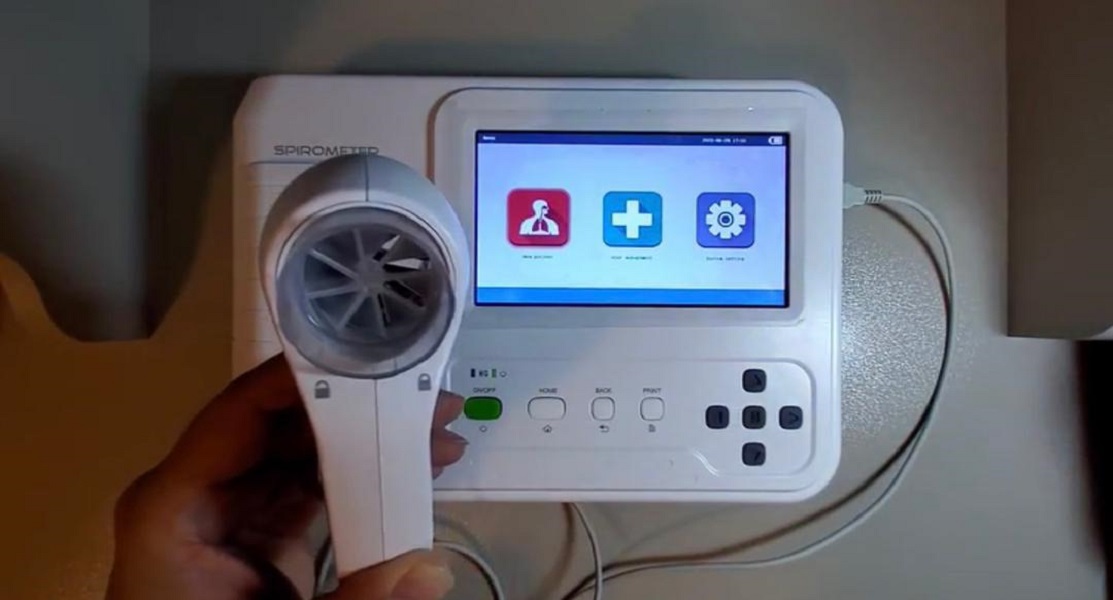

SP100 Spirometer is a portable lung function testing device, which mainly used to examine lung function related parameters for patients. It can be applied to various environments such as in hospitals, clinics, etc. And it is also suitable for communities, schools, factories and other places to conduct epidemiological investigation, health examination, occupational disease screenings.
Features

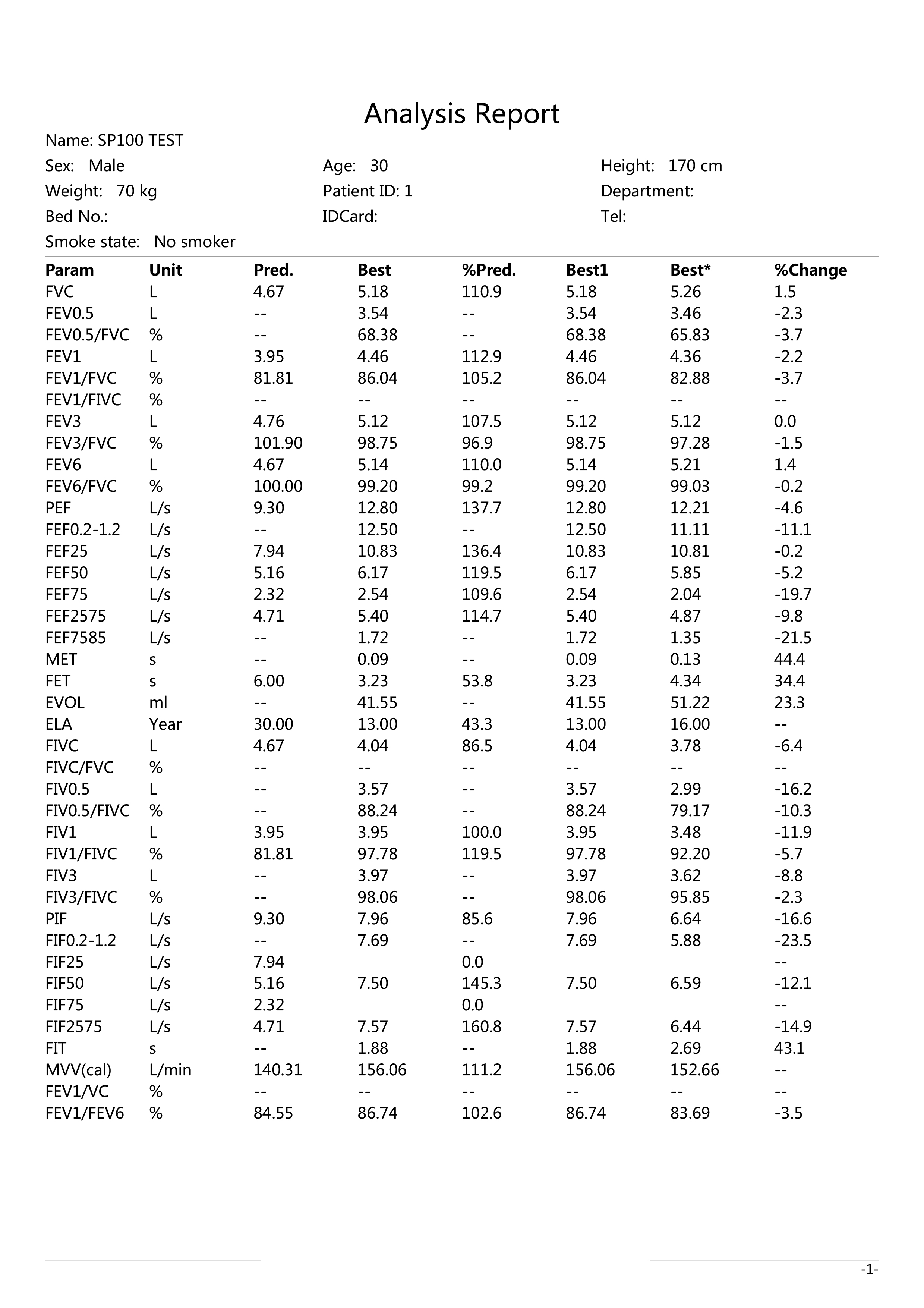

1)Measurement of Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), maximum voluntary ventilation (MVV) and relevant functions, more than 50 parameters can be measured and displayed; for several times of measurement, the optimal result will be displayed; the condition of subject can be shown by the ratio of the measured value and the predicted value.
2)Measurement parameters:
Forced Vital Capacity (FVC): FVC,FEV1,PEF,FEV1%,(FEV1/FVC),FEF25,FEF50,FEF75,
FEF2575,FEV1/VC,FEV6,FEV1/FEV6,ELA,FET,EVOL,FIVC,FIV1,FIV1/FIVC,PIF,MVV,etc.
Vital Capacity (VC/SVC): VC,IC,ERV,IRV,EVC,IVC,TV,VE,RR,tI,tI/tE,tE,TV/tI,tI/ttot
Maximum Ventilatory Volume (MVV): MVV

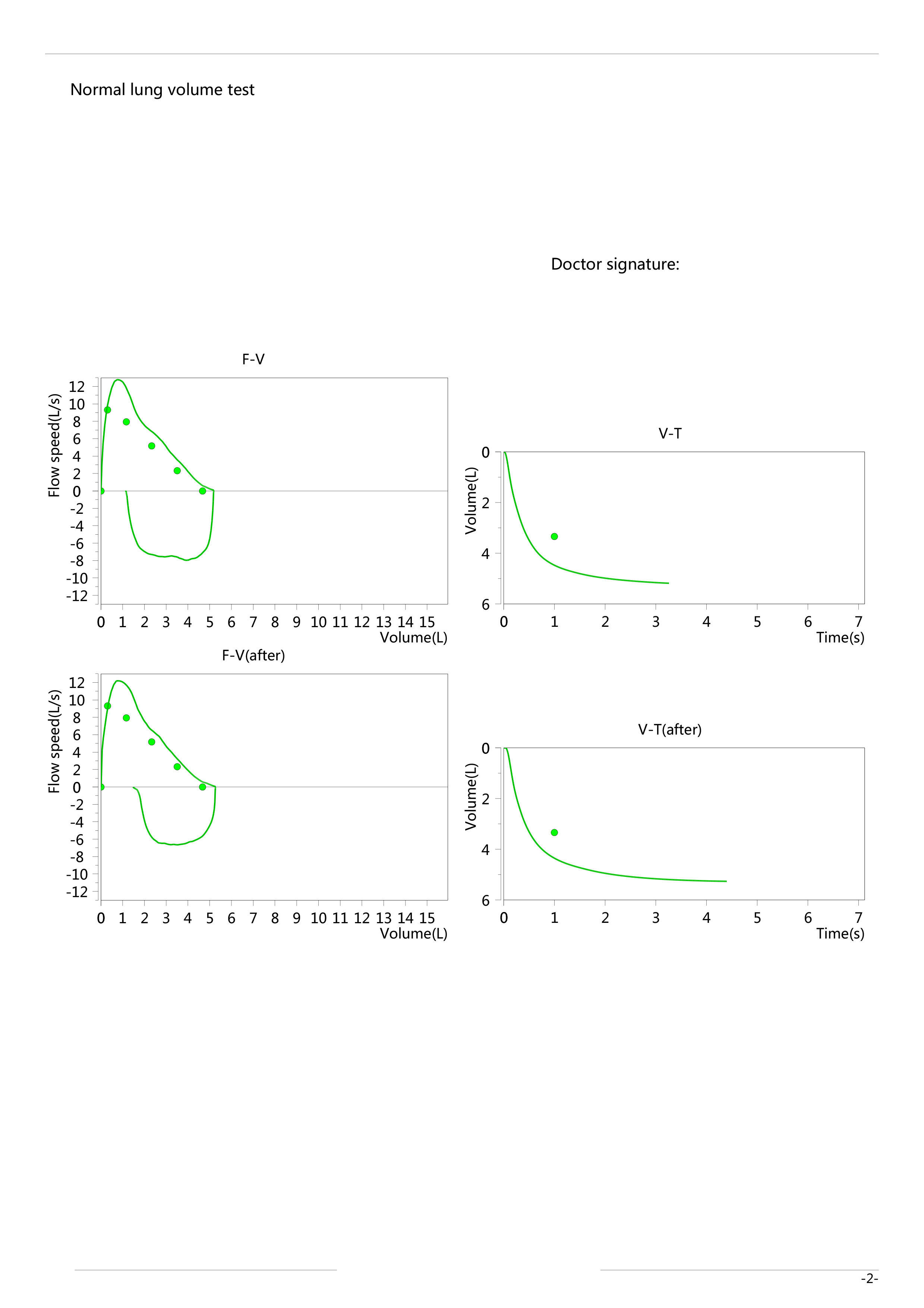

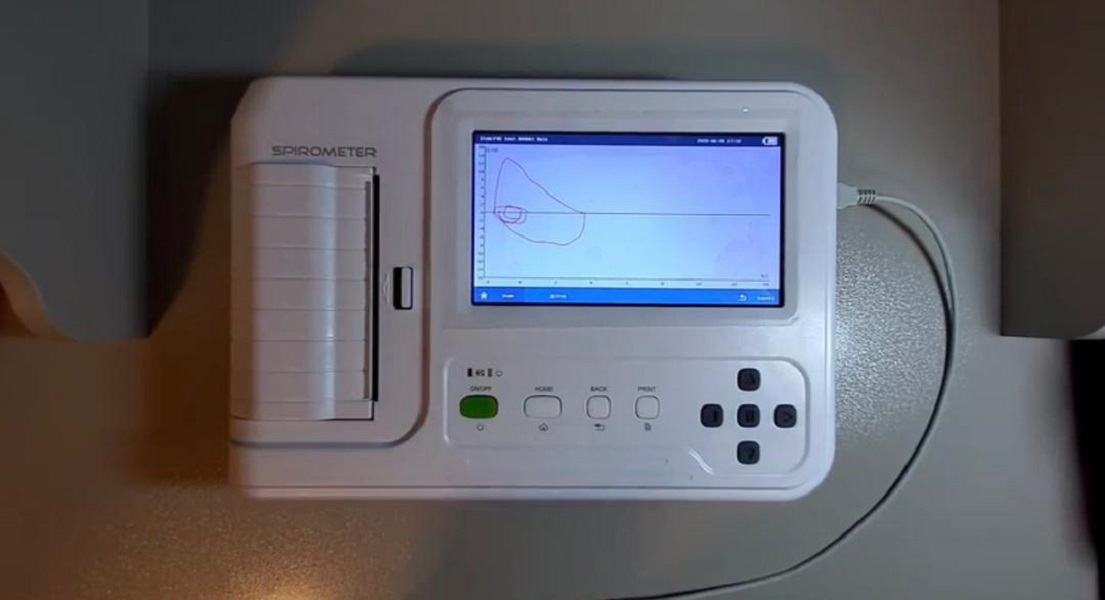

3)Real-time display respiration waveform:Flow-Volume loop and Volume-Time curve chart;
4)7" color LCD touch screen, buttons can be operated along with touch screen;
5)Incentive animation operation guide, easy for the use between children and the old;

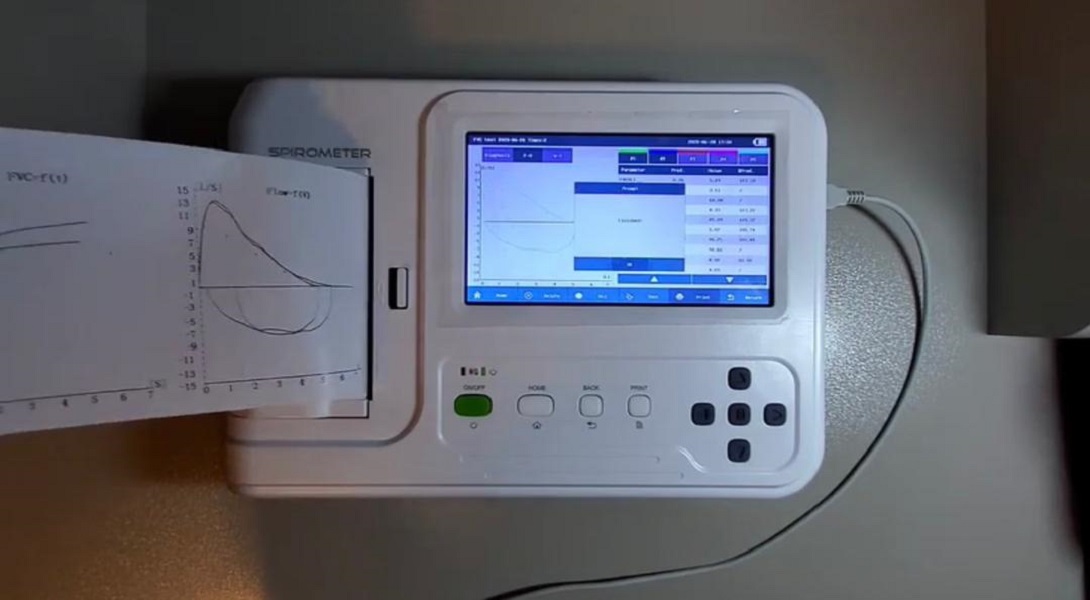

6)Built-in thermal printer, reports can be printed directly;
7)BTPS automatic correction function, compensate for the impact of environmental differences;
8)Test time and environment temperature display;
9)Calibration function, ensure measurement accuracy;
10)Multiple predicted value can be selected, suitable for different population;
11)Storage of more than 10,000 groups of data;
12)Lung age estimation function;
13)Built-in lithium battery, supports both of AC and DC.
Performance
1)Volume range :0~ 10 L(FVC)
2)Volume accuracy: ±3% or ±0.05 L (whichever is greater)
3)Flow Range: 0~ 16 L/s
4)Flow accuracy: ±5% or ±0.2 L/s (whichever is greater)
5)Power supply: 100 V-240 V~ 50 Hz/60 Hz
6)Input power: 60 VA
7)Safety type: Class I equipment, type BF applied part
8)LCD screen: 7" color TFT touch screen
9)Printing paper: 112 mm(W)×20 m(L) high-speed thermal paper
Accessories
Spirometer + Hand Piece 1pc
Mouthpiece + Anti Bacterial Filter 2pcs(disposable accessory)
nose clip 1pc
Recording paper 1pc
Power cord 1pc
User Manual 1pc
Physical characteristic
Dimension: 315 mm(L)×215 mm(W)×92 mm(H)
Weight: 1.8 kg
