Overview

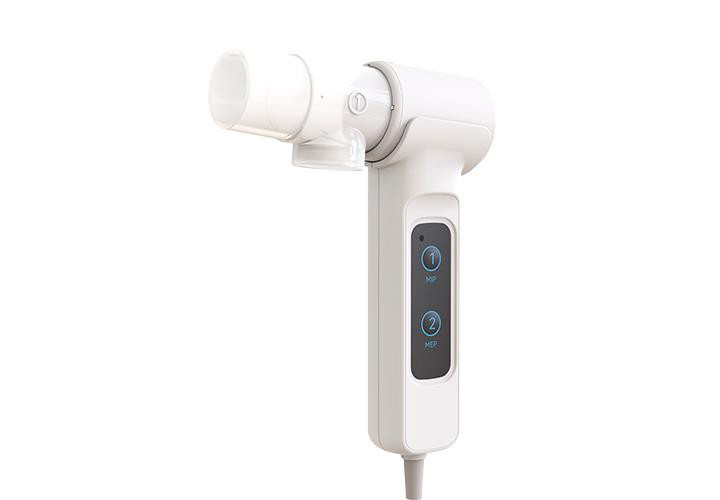

The RPM10 is a portable respiratory muscle strength testing device manufactured in China. It is designed to measure Maximal Inspiratory Pressure (MIP) and Maximal Expiratory Pressure (MEP) non-invasively, while displaying real-time pressure/time curves—making it ideal for clinical and rehabilitation use.

Key Features

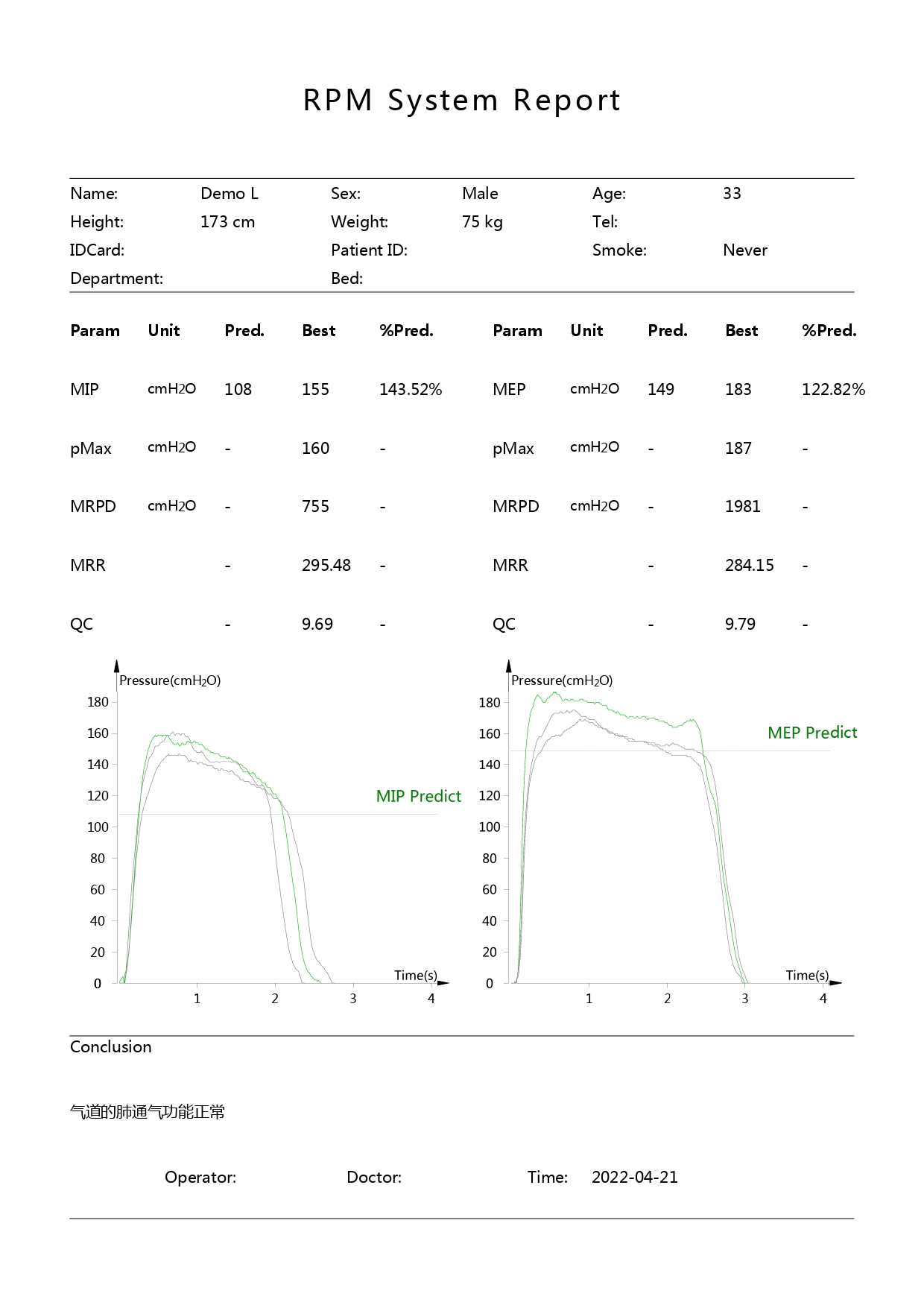

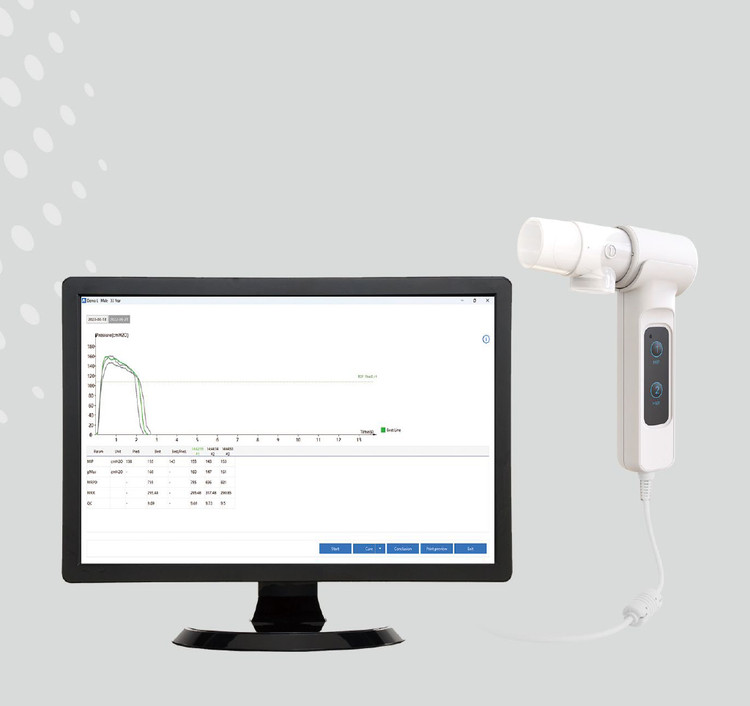

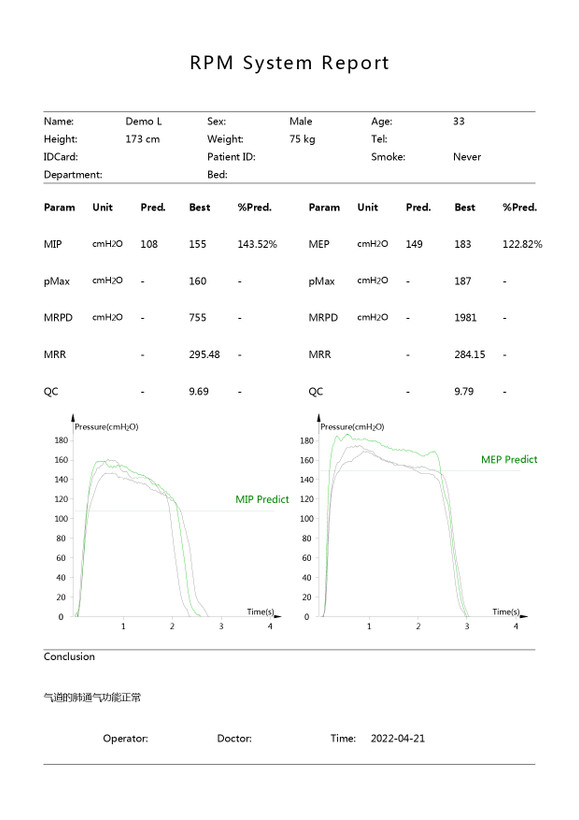

• Real-time monitoring of respiratory waveforms for both inspiratory and expiratory actions.
• Automatic calculations include values, comparisons to expected norms, quality control ratings, and identification of the best results from multiple measurements.
• LED indicators: LED lights signal connection status and data collection activity.
• Audible buzzer prompts confirm successful connections and button presses.

Applications

• Disease assessment: Evaluates impact of neuromuscular disorders on inspiratory muscles and broader lung function.
• Rehabilitation tracking: Used for monitoring chronic obstructive pulmonary disease (COPD), thoracic deformities, drug-induced respiratory impairment, and post-ventilation recovery readiness.
• Clinical tool: Helps determine readiness for weaning from mechanical ventilation and provides respiratory muscle strength data to medical professionals.

Specifications

Feature                                                Details

Air Pressure Range                            ±300 cm H₂O

Accuracy                                             ±3% or ±3 cm H₂O (whichever is greater)

Weight                                                Approximately 130 g (some sources indicate 220 g)

Dimensions                                        146 mm (L) × 107 mm (W) × 40 mm (H)

Certifications                                     CE, ISO 13485

Indicators                                           LED, buzzer signals
